kilo™ user guide

Get Started Using Your Kilo

Quickly get up to speed on the basics of kilo. Learn how to use kilo in Follow and Trips modes, as well as some basics on hardware and safety.

Follow mode

Press the circle button on top of kilo’s pillar to pair with you. Press it again to put it back in standby mode.

Standard Following

Walk away from kilo and it will follow you at your pace (up to 3 mph).

Forward Following

Walk toward kilo and it will move as though you were pushing a cart.

Tip: to switch from following to forward following, turn around and take a small step toward kilo, then resume walking at normal speed. If you move too quickly, kilo may unpair.



Trips

Send kilo from one place to another autonomously using a prerecorded Trip via the PFF Pro app.

For more extensive details on recording and playing back Trips, see the Trips Best Practices article.

Record

  1. Open the PFF Pro app and log in if necessary.

  2. Select the kilo robot you would like to use.

  3. Tap Add new trip and follow the prompts to:

    1. Create the first endpoint for the Trip.

    2. Have kilo follow you along the route you want it to take.

    3. Create the second endpoint for the Trip.

  4. Follow the prompts to save the trip and replay as needed.

all usersall users-1

Send

  1. Open the PFF Pro app and log in if necessary.

  2. Select the kilo robot you would like to use.

  3. Tap on the Trip Library.

  4. Swipe left or right on the Trip you want to send kilo on.

    1. The swipe direction corresponds to which end of the Trip kilo is starting at.





Note: kilo will play the Trip back at the speed you recorded it.



About kilo

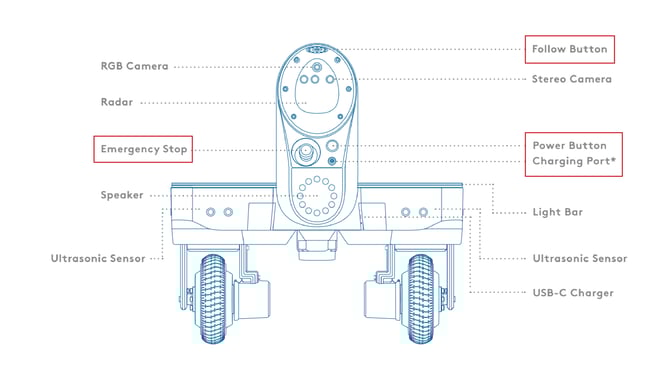

The pillar contains the buttons and ports that allow you to interact with kilo. Notably:

  • Follow button - touch to pair or unpair with kilo in follow mode.
  • Emergency stop - press the emergency stop button to immediately cut power to kilo. Only use this in the case of an emergency.
  • Power button - press the power button to turn kilo on, or press and hold the power button for 3 seconds to power kilo off. Note: kilo will power itself off after 30 minutes in standby mode.
  • Charging port - plug kilo’s provided charger into this port to charge the robot.

kiloKnowledgeBase_PillarDiagram



Safety Considerations

  • Do not ride on kilo.

  • kilo weighs 140 lbs. Use a two person lift if you must move it manually.

  • kilo can carry up to 300 lbs. Do not exceed this weight limit.

    • Stack heavier, larger items on the bottom.

  • kilo can navigate ramps up to 1:12 (5°, or standard US building code ramps).

Lights & Sounds

kiloKnowledgeBase_LightingChart-1

*sounds included
